World-first Satellite MLS projector installation at Aussie uni
Digital Projection Satellite MLS projector heads have been hung at display sites at a university visualisation hub with the light source 15 metres away in a server room.
The world’s first installation of Digital Projection’s Satellite Modular Laser System (MLS) projectors has taken place at the HIVE visualisation hub run by Curtin University in Perth, Western Australia.
The HIVE (Hub for Immersive Visualisation and eResearch) is one of the most advanced visualisation facilities of its kind, and the only one in the world that contains five different large-scale visualisation displays.
Its work with technologies such as VR, AR, data and scientific visualisation, photogrammetric 3D reconstruction, and volumetric imaging has been used to,help patients with spinal cord injuries, investigate consumer behaviour and create virtual experiences of shipwreck sites, among other applications. Its facilities have also supported pioneering research in space exploration, health sciences, education and engineering.
“Essentially, it is a sandbox offering university research staff the opportunity to explore a wide range of visualisation technology options in research projects across all expertise areas,” said associate professor Andrew Woods, manager of the Curtin HIVE, who also served as the client lead for the upgrade project. “The facility was originally established in 2013, so it was definitely time to update the HIVE AV systems with the latest projection technology,” he added.
The display facilities at the HIVE, located in a 15m × 15m former gallery space, comprise the Dome display, a 4m-diameter half-dome which fills a user’s primary and peripheral field of view; the Cylinder display, a wrap-around 3D display providing a VR experience for up to 50 users; the Wedge display, a pair of 3.8m diagonal 3D displays used mainly for scientific visualisation; the Tiled display, which with 24MP resolution is used for super high-resolution visuals; and the Hologram Table, which provides two users with 3D visuals that project out of its tabletop display surface. The upgrade project focused on the Dome and the Cylinder displays.

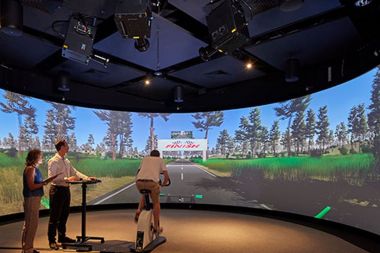

“The HIVE Cylinder display is the flagship system in the facility,” continues Woods. “The Cylinder display uses three projectors to light a 3m-high, 8m-diameter, 180° cylindrical projection screen. In upgrading the HIVE Cylinder display, in particular, we were keen to increase the display resolution to use native 4K projectors, which would provide a four-fold increase in displayed pixels, and to increase the brightness, all while maintaining the existing 120Hz stereoscopic 3D capability of the display.”
InDesign Technologies, the project’s consultant, quickly realised that Digital Projection’s Satellite MLS was the only projection system that met the HIVE’s requirements (full 4K with 120Hz compatibility, and not subject to the exclusion zones that would be necessary with a class-3 laser product) – to the extent that Curtin University was willing to wait for it to come to market rather than compromise by specifying a different system.
“The Digital Projection Satellite Modular Laser System (MLS) was still in development as a technology when discussions commenced,” recalled Tanya Hall, business development manager for integrated solutions at Amber Technology, Digital Projection’s distributor in Australia and New Zealand. Hall worked closely with Woods, InDesign, integrator Vizcom Technologies, and Emilijo Mihatov, regional sales manager for Digital Projection, to discuss and scope the technology requirements of the project, and VIOSO to develop a solution for the requirements of the HIVE Cylinder install.
Launched last summer, the Satellite MLS separates the light source from the small, lightweight projector head, giving integrators greater freedom, particularly where space and access are restricted, while reducing noise and heat from the audience location. This technology makes high-end RGB laser illumination accessible at a cost-effective price point.
At the HIVE, three Satellite MLS systems are installed in the Cylinder display, with a further system deployed in the Dome display. Taking advantage of the Satellite MLS’s modular nature, which allows up to 100m separation between the projection head and light source, InDesign was able to hang the unobtrusive satellite projector heads at the display sites while locating the light sources around 15m away in a server room containing the other AV and computer equipment.
“There was a requirement for the projectors to make as little noise impact to the space as possible,” said Scott Wrightson, project manager for Vizcom Technologies. “This made the Digital Projection Satellite MLS systems invaluable. By having the main laser processor housed in the central comms room it made the operating noise level of the projection heads very low, which in turn suited this project perfectly.”
“The Digital Projection Satellite technology allowed us to meet our needs and more, with a small head size, minimised audible noise from the head – because the light source is in the server room – rich laser-light engine visuals, and cinema-quality three-chip DLP images, at a reasonable budget point,” added Woods.
Amber Technology worked with, and was supported by, Digital Projection throughout the project timeline. There were many hours of communication with the Digital Projection team to tap into their expertise on the specification, solution scope and system commissioning. In particular, the Digital Projection team’s insight into how the system would interact with the HIVE’s existing infrastructure was invaluable.
Not that it was always plain sailing – working with such a new technology was bound to bring certain challenges. The projectors required specialist lenses that did not, at that time, have any local distribution representation, so with the help of Emilijo Mihatov from Digital Projection, Amber Technology was able to contact the lens manufacturer and establish a trading arrangement to bring the required lenses into Australia for this project.
Similarly, with the sophisticated blending requirements for the cylinder component of the project, Amber was able to make connection with VIOSO through Digital Projection and source the blending workstations required.
Physical mounting positions also proved to be an issue, recalled Wrightson, with a full structural reinforcement required to have the mounting beams in the correct positions for both the Cylinder and Dome displays.
“With this mounting solution also came some environmental vibrations form the building’s HVAC systems,” Wrightson continues, “which was particularly noticeable when using the Jenoptik fisheye lens in the Dome display area, so we had to design and construct a custom lens collar to negate this.”
For the HIVE, the improved AV system is an important step forward for a facility whose work revolves around high-impact visuals. “Ultimately our aim is that the displays in the HIVE are essentially invisible to the user, just providing a window into a different world,” explained Woods. “Our aim is to put amazing visuals on the blank canvas of these displays – visuals that support the applications and research projects that our users come to us with.”
